6kw Solar generator system

Complete in-house production line of: MPPT Solar Charge Controller, Inverter, Battery, Solar panel

Chinese Leading manufacture of solar battery

Chinese leading manufacture of solar home generator system

Uncompromised quality control & devotion in R&D of green energy

Factory outlet price

Description

Oxiang manufacturer is supplying a new generation of Home solar power generation system . It has an intelligent display, which can show not only daily power generation, cumulative power generation and real-time operating parameters, but also fault records. It can be selected between AC priority and PV priority. You can also choose AC charging mode or PV+AC to charge the battery. What’s more, the MPPT controller is with low loss, which can increase power generation by 25%.

Home solar power generation system with the following features:

1. Integrated design, easy install and maintain.

2. off grid solar energy system charging mode: PV charge / PV+AC hybrid charge work mode: DC first or AC first to save energy to the most extent.

3. record the latest 10 times abnormal shutdown, then we will provide solutions promtply.

4. Chinese & English LCD, backlight power saving mode, time set, working mode set

5. query log: malfunction query log, battery discharge time query log.

6. with perfect protect functions

7.Have app,can remote reading of Solar generator system operating parameters

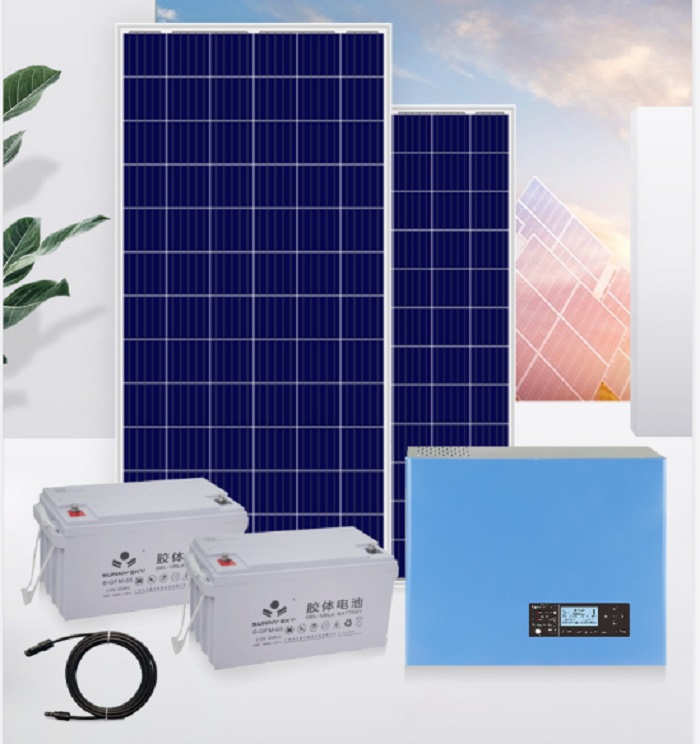

Solar generator system Model:	SP-156
Solar generator system Model Name	Description	Quantity(pcs)
Solar panel	275W Poly crystalline	15
MPPT Solar Controller	96V60A	1
Solar Inverter	6KW pure sine wave	1
Lead acid battery	12V250AH	8
Solar brackets	aluminum alloy	1
PV cables	4mm2	300M
How many kilowatt hours the Solar Power system for Farms and Agriculture Use?
Daily production:	16.5kw-24.75kw
Average monthly production:	495kw-742.5kw
Expected annual production:	5940kw-8910kw
AC charging current	20A
Working mode	DC first / AC first
Max. output power	6kw
Charging mode	solar panel / AC&DC hybrid
100KW hybird Solar Power system manufacturer Charge time	By solar panel about 5 hours/By AC & DC hybrid about 3.7 hours.
Solar generator system warranty
Accessory	brackets, battery box, Lightning protection distribution box and PVcables 2 years warranty
Battery	lead-acid battery, 3-5 years life span and 1 year warranty
Solar panel	25 years life span and 5 years warranty
Controller	10 years life span and 2 years warranty
Inverter	10 years life span and 2 years warranty
