15KW Home solar power generation system

Complete in-house production line of: MPPT Solar Charge Controller, Inverter, Battery, Solar panel

Chinese Leading manufacture of solar battery

Chinese leading manufacture of solar home generator system

Uncompromised quality control & devotion in R&D of green energy

Factory outlet price



Description

Oxiang manufacturer is supplying a new generation of Home solar power generation system . It has an intelligent display, which can show not only daily power generation, cumulative power generation and real-time operating parameters, but also fault records. It can be selected between AC priority and PV priority. You can also choose AC charging mode or PV+AC to charge the battery. What’s more, the MPPT controller is with low loss, which can increase power generation by 25%.



Home solar power generation system with the following features:

1. Integrated design, easy install and maintain.

2. off grid solar energy system charging mode: PV charge   /   PV+AC hybrid charge   work mode: DC first or AC first    to save energy to the most extent.

3. record the latest 10 times abnormal shutdown,  then we will provide solutions promtply.

4. Chinese & English LCD, backlight power saving mode, time set, working mode set

5. query log: malfunction query log, battery discharge time query log.

6. with perfect protect functions

7.Have app,can remote reading of Solar generator system operating parameters

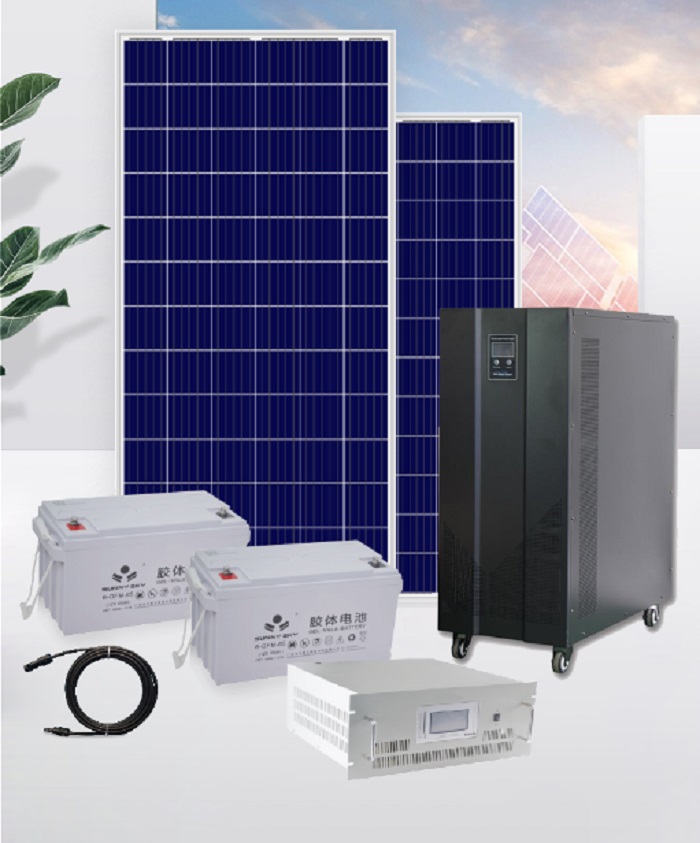

Off-grid solar power generator Model:	SP-5015
Off-grid solar power generator Name	Description	Quantity(pcs)
Solar panel	310W Poly crystalline	50
MPPT Solar Controller	96V60A	2
Solar Inverter	15KW  pure sine wave	1
Lead acid battery	2V500AH	96
Solar brackets	aluminum alloy	1
PV cables	4mm2	800M
How many kilowatt hours the Solar Power system for Farms and Agriculture Use?
Daily production:	62kw-93kw
Average monthly production:	1860kw-2790kw
Expected annual  production:	22320kw-33480kw
AC charging current	20A
Working mode	DC first / AC first
Max. output power	15kw
Charging mode	solar panel / AC&DC hybrid
100KW hybird Solar Power system manufacturer Charge time	By solar panel about 6.9 hours/By AC & DC hybrid about 3.7 hours.
Home solar power generation system warranty
Accessory	brackets, battery box, Lightning protection distribution box and PVcables 2 years warranty
Battery	lead-acid battery, 3-5 years life span and 1 year warranty
Solar panel	25 years life span and 5 years warranty
Controller	10 years life span and 2 years warranty
Inverter	10 years life span and 2 years warranty
