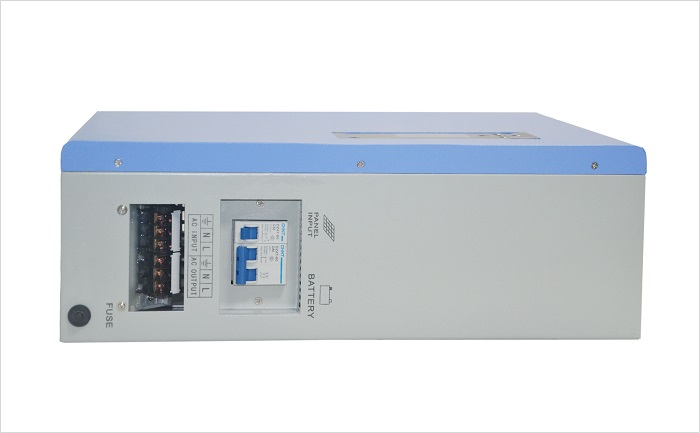

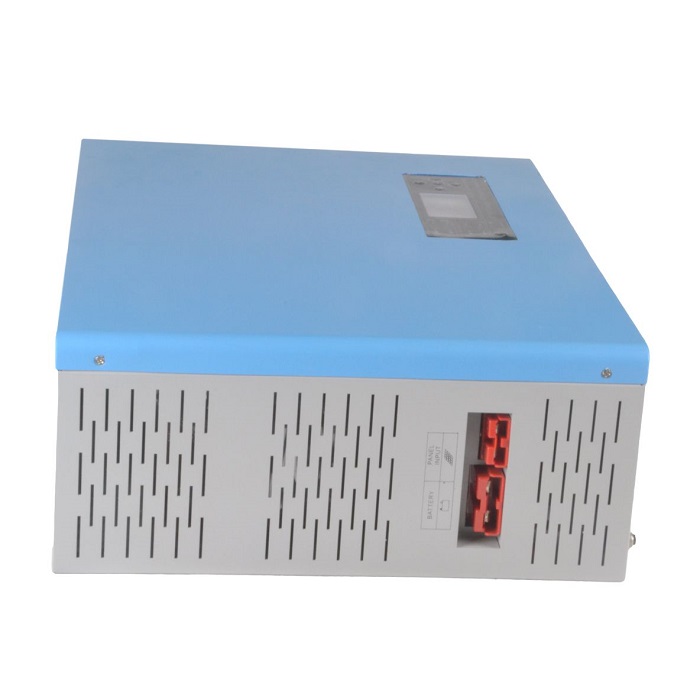

TIC6060 MPPT wall mounted control inverter integrated machine
- Brand OXIANG
- Model TIC
- Description
olar Pure Sine WaveInverter£¬Solar power system,Solar Power Generator System,Solar Home System...
Detail
MPPT wall mounted control inverter integrated machine
| MPPT wall mounted control inverter integrated machine | ||||||||||||||
| MODEL£¨TIC-£© | 0730 | 1030 | 1530 | 1560 | 2030 | 2060 | 3030 | 3060 | 4060 | 4060-96V | 5060 | 5060-96V | 6060 | |
| Rated Capacity | 700W (1KVA) | 1KW (1.5KVA) | 1KW (2KVA) | 2KW (3KVA) | 3KW (5KVA) | 4KW (6KVA) | 5KW (7KVA) | 6KW (8KVA) | ||||||
| Function | Setting | Chinese & English option, Time &Date setting ,Contrast ,lightness, Switch voltage, Grid charge, clear record ,operating parameter, discharge limited setting, Reset . | ||||||||||||
| Work Mode | Grid Priority/Battery Priority£¨optional£© | |||||||||||||
| Charge Mode | PV priority/ PV+Grid£¨optional£© | |||||||||||||
| LCD Display | Internal and External temperature, record query (fault record), System information query | |||||||||||||
| PV input | Voltage range(Vdc) | 12V (DC18V~DC150V)£»24V(DC34V~DC150V); 48V(DC65V-150V); 96V(DC130-DC180V£© | ||||||||||||
| Battery max charge current(A) | 30A | 30A | 30A | 60A | 30A | 60A | 30A | 60A | 60A | 96V60A | 60A | 96V60A | 60A | |
| Battery Voltage(Vdc) | 12/24V | 24V | 24/48V | 24/48V | 24/48V | 24/48V | 24/48V | 24/48V | 48V | 96V | 48V | 96V | 48V | |
| Max power load(W) | 420W/840W | 840W | 840W/1650W | 1700W/3400W | 840W/1650W | 1700W/3400W | 840W/1650W | 1700W/3400W | 3400W | 6800W | 3400W | 6800W | 3400W | |
| Float Voltage (Vdc) | 12V(13.75V);24V(27.5V)48V(55V);96V(110V) | |||||||||||||
| Equalizaiton voltage (Vdc) | 12V(14.2V); 24V(28.4V);48V(56.8V);96V(113.6V) | |||||||||||||
| Grid input | Battery Type | Lead acid/gel/lithium(optional, factory setting) | ||||||||||||
| Charge current | 0-30A Optional | |||||||||||||
| Charge mode | Improve charge ,direct charge, float charge | |||||||||||||
| AC output | AC charge current(A) | Standard:0-30A | ||||||||||||
| AC output voltage(Vac) |
110/220/230/240¡À3% |
|||||||||||||
| AC output frequency(Hz) | 50/60¡À3% | |||||||||||||
| Conversion Efficiency | ¡Ý85% | |||||||||||||
| Overload | 105-120% 30S;120-150% 10S;>150% 5S | |||||||||||||
| Output Form | Pure sine wave | |||||||||||||
| Output power factor | ¡Ý0.8(£¾30% Load£© | |||||||||||||
| Wave form distortion | ¡Ü3% | |||||||||||||
| Switching time | ¡Ü4mS | |||||||||||||
| Protect funtion | Overload capacity | 105-120% 30S;120-150% 10S;>150% 5S | ||||||||||||
| Over discharge | DC10.5V(12V)/DC21V(24V)/DC42(48V)/DC84V Shut down after alarm | |||||||||||||
| Over charge | DC16V(12V)/DC32V(21V)/DC64(48V)/DC128V Shut down after alarm | |||||||||||||
| High temperature | 85¡ã auto shut down after alarm | |||||||||||||
| Short circuit | Auto shut down | |||||||||||||
| Others | Switching time | ¡Ü4mS | ||||||||||||

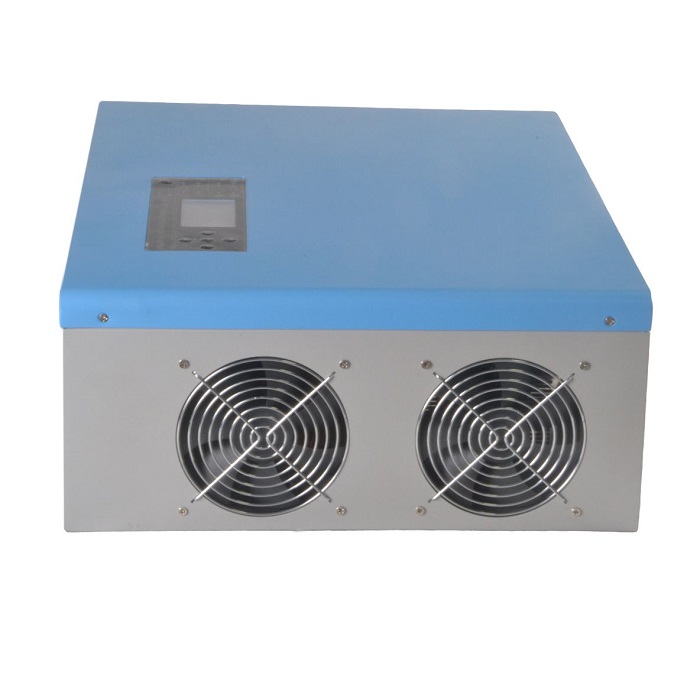

| Cooling method | Fan cooling | |||||||||||||
| Noise[dBA] | <60 | |||||||||||||
| Operating temperature(¡æ) | -10¡« 50 | |||||||||||||
| Environment humidity | 10£¥ ¡« 90£¥(No condensation) | |||||||||||||
| Working Elevation(M) | <5000 (>1000m,Derating) | |||||||||||||
