SP-074 4KW Solar power system(smart series)
- Brand OXIANG
- Model SP-074
- Description
Solar power system,Solar Power Generator System,Solar Home System,Mini Solar System,1kw-100kw Solar....
4kw Solar hybrid power system
Complete in-house production line of: MPPT Solar Charge Controller, Inverter, Battery, Solar panel
Chinese Leading manufacture of solar battery
Chinese leading manufacture of solar home generator system
Uncompromised quality control & devotion in R&D of green energy
Factory outlet price
Description

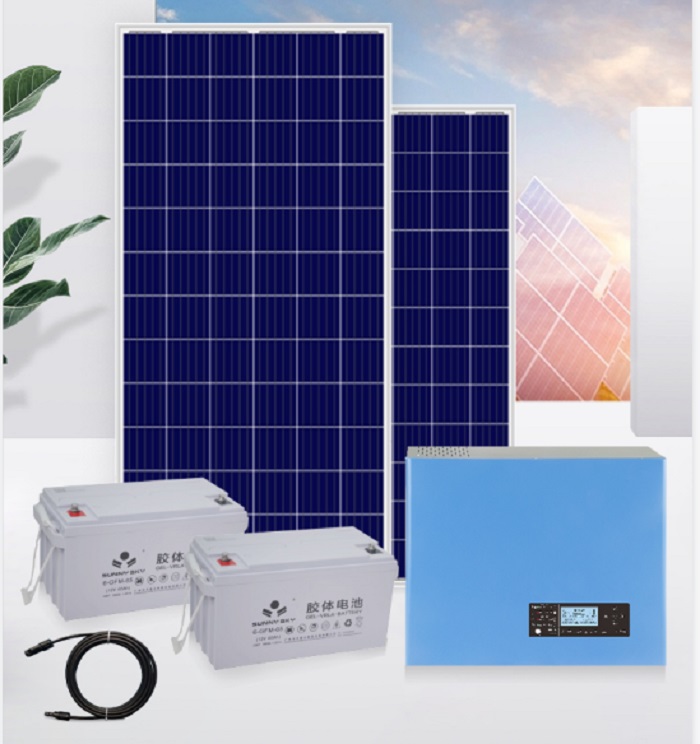

Oxiang manufacturer is supplying a new generation of Home solar power generation system . It has an intelligent display, which can show not only daily power generation, cumulative power generation and real-time operating parameters, but also fault records. It can be selected between AC priority and PV priority. You can also choose AC charging mode or PV+AC to charge the battery. What’s more, the MPPT controller is with low loss, which can increase power generation by 25%.
Home solar power generation system with the following features:
1. Integrated design, easy install and maintain.
2. off grid solar energy system charging mode: PV charge / PV+AC hybrid charge work mode: DC first or AC first to save energy to the most extent.
3. record the latest 10 times abnormal shutdown, then we will provide solutions promtply.
4. Chinese & English LCD, backlight power saving mode, time set, working mode set
5. query log: malfunction query log, battery discharge time query log.
6. with perfect protect functions
7.Have app,can remote reading of Solar generator system operating parameters

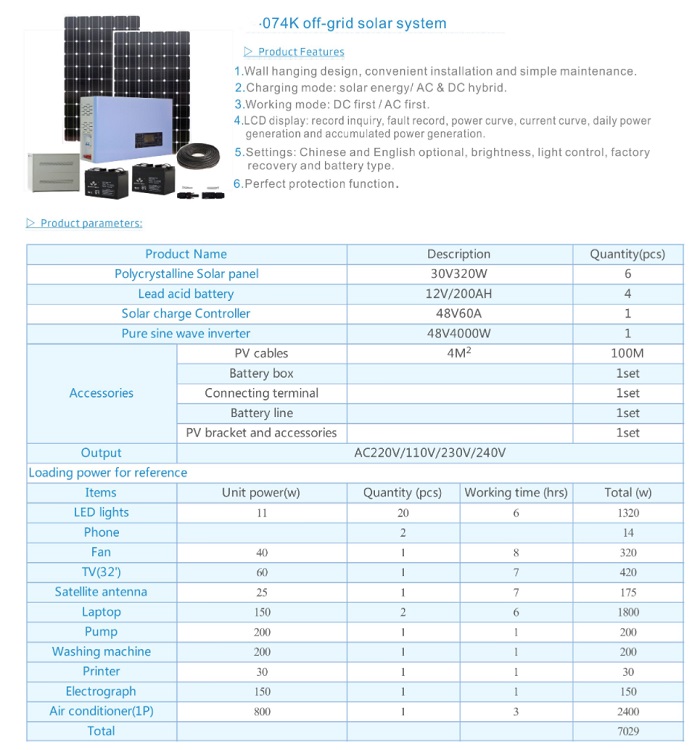

| Solar generator system Model: | SP-074 | |
| Solar generator system Model Name | Description | Quantity(pcs) |
| Solar panel | 320W Poly crystalline | 6 |
| MPPT Solar Controller | 48V60A | 1 |
| Solar Inverter | 4KW pure sine wave | 1 |
| Lead acid battery | 12V200AH | 4 |
| Solar brackets | aluminum alloy | 1 |
| PV cables | 4mm2 | 100M |
| How many kilowatt hours the Solar Power system for Farms and Agriculture Use? | ||
| Daily production: | 7.68kw-11.5kw | |
| Average monthly production: | 230kw-345.6kw | |
| Expected annual production: | 2764kw-4147kw | |
| AC charging current | 20A | |
| Working mode | DC first / AC first | |
| Max. output power | 4kw | |
| Charging mode | solar panel / AC&DC hybrid | |
| 100KW hybird Solar Power system manufacturer Charge time | By solar panel about 5 hours/By AC & DC hybrid about 3.7 hours. | |
| Solar generator system warranty | ||
| Accessory | brackets, battery box, Lightning protection distribution box and PVcables 2 years warranty | |
| Battery | lead-acid battery, 3-5 years life span and 1 year warranty | |
| Solar panel | 25 years life span and 5 years warranty | |
| Controller | 10 years life span and 2 years warranty | |
| Inverter | 10 years life span and 2 years warranty | |
